DIY - Heavy Weight Build for 350 Pounder

B.M.F · September 24, 2025, 2:14pm

Hi everyone… I’m new to the forum and I’m excited to be a part of the community!

As a 350# male, I just retired an 10” all memory foam mattress after 13 years… it should’ve been replaced years earlier as I thoroughly beaten down that memory foam, :). I have a king bed to myself, and I tend to sprawl out in the middle of the mattress.

I just replaced it with a WinkBed Plus, but I’m not sure I’m in love with the WinkBed and I’m highly considering a return. Since I’ve had a hard time finding different mattress builds that marketed towards heavier individuals/couples, I’ve decided to do some research and come up with my own DIY build. Problem is, I am a newbie with zero DIY experience, so I’ve come to the right place for a proper education!

When researching HD mattresses, I couldn’t find anything marketed and warranted towards heavyweights outside of hybrid coil designs… so I ultimately went with the WinkBed Plus thinking that it looked like it had the most comfortable pillow top of the mattresses in that $2,000 range for a King.

Now 4 weeks later, I am having a hard time getting a good night sleep on the WinkBed Plus. I really don’t like the zoned lumbar support with their coil strategy… I feel like there is a speed bump in the center, and because of that, my upper body is actually sloping slightly downhill. Might also be the mattress tension, as none of the 4 corners of the mattress lay flat, and the overall crown effect is sort of driving me nuts… probably just because I’m used to sleeping on nothing but flat foam for over a decade.

I want to build a mattress that combines long term, 15-20 years, structural support, but adds luxury Euro-top pillow plushness that is modular and can be replaced easily as the comfort layers won’t last but likely 5-8 years. I would be incredibly grateful if this community could give me some feedback, and offer recommendations as I am a bit nervous going DIY.

Build Specs:

Latex Core - 10” total

3” extra firm Dunlop Latex - 44 ILD
3” firm Dunlop Latex - 38 ILD
2” firm Talalay Latex - 38 ILD
2” medium Talalay Latex - 28 ILD

Mattress Cover - 14”

Pocket Coil Store Premium DIY Stretch Cover
- Stretch-knit organic cotton top
- Mid-panel 360 zipper for easier assembly, and some crown tension
- Reinforced sides to reduce bulge
- Waterfall edges for a just a touch of the finished mattress factory look

Comfort & Quilt Layers

Inside the cover, on top of the Latex Core
- 3” Coop Cool+ Topper (shredded memory foam blend)
- 2” Boll & Branch Cloud Cover Wool Mattress Topper
  - Quilted, box-stitched, piped edges
- Mattress Protector - PureCare quilted plush protector (Outside Cover)

Compression / Crown Tension

Raw stack height: ~15” (10” latex + 3” Cool+ topper + 2” wool topper)
Pocket Coil 14” cover = ~1” overstuff –> creates Euro-top crown tension without over-compressing comfort layers

Bed - structural foundation

emBrace 360 platform bed by Knickerbocker

Questions for the Community:

Layering logic - Do you think the 6” of Dunlop + 4” of Talalay arrangement provides the right balance of durability, support and comfort transitions at 350 lbs?
Euro-top feel - With the Cool+ topper and Wool topper inside the stretch cover, am I right to expect a finished crown and quilted surface similar to a mattress factory style pillowtop?
Cover choice - Would you consider the Pocket Coil stretch cover (no built-in wool quilt, but strong mid-zipper tension) a better option than a more traditional quilted wool cover, like those you see with SleepEZ / Latex Mattress Factory, given my goal of bounce + Euro-top look?
Fire retardant concerns - the Boll & Branch topper has natural wool, but is not a certified FR barrier. Should I consider adding some sort of FR knit inside the cover, or is the wool + protector sufficient in real-world terms?

Closing thoughts

I feel like this build blends the durability of a latex core with the luxury aesthetic of a pillowtop hybrid - but I’d love to hear from those of you who’ve actually lived with similar DIY setups.

I already own the Coop Cool+ topper and PureCare mattress protector, but the rest I’d have to invest in with the money I get when I return the WinkBed Plus.

Also, I’m trying very hard to lose weight, so I like how I can flip the Talalay latex layers, to adjust the comfort levels when the time comes.

Thanks in advance for your insights!

Brett

NikkiTMU · September 26, 2025, 12:08am

Hey Brett!

Welcome to our Mattress Forum

I love a good spirit of adventure when approaching a DIY! That kind of curiosity and willingness to dig in is exactly what makes DIY mattresses fun (and honestly, way less intimidating once you get rolling).

From what you’ve outlined, your 6” of Dunlop paired with 4” of Talalay looks like a solid foundation. Dunlop will give you the sturdiness you need at your weight, while the Talalay brings in that little bit of bounce and contouring. Nice combo. HD foam in the base can also be a cheaper but sturdy alternative.

I also think your topper setup is going to get you pretty close to the Euro-top vibe you’re after. It’s not going to be a factory quilted surface in the traditional sense, but it will feel plush and give you that crown effect you’re craving without the “speed bump” you mentioned from the WinkBed.

And I really like the cover choice you’re leaning toward. The mid-panel zipper tension is practical, and since you’re aiming for that Euro-top look instead of a taut wool quilt, the stretch-knit is probably going to make you happier in the long run.

As for fire resistance, plenty of DIY folks stick with wool plus a good protector. It’s not “certified FR” territory like you’d find in a retail mattress, but in real-world terms, most people feel good about that setup.

All in all, your plan makes sense, and I think you’re on the right track. The best part is that you’ll be able to refresh those comfort layers down the road instead of tossing the whole mattress.

I’m also going to tag @Arizona_Premium here in case Ken has any DIY insights for you - and of course, if any of our DIYers with similar builds want to chime in…that’d be awesome too.

NikkiTMU

PSS · October 1, 2025, 6:20pm

Brett

Not trying to sell you here, but I would suggest a firmer pocket coil base vs foam. The pockets will outlast the foam. A solid pocket coil unit is alive and always working to create resistance. Foam will ultimately break down and take a set. You’ll end up with a dip over time.

SleepyGirl2 · October 7, 2025, 2:14am

I really like your planned setup. It sounds well thought out. I’d keep the 6” Dunlop + 4” Talalay combo since it gives great support and comfort balance. The stretch cover should give you that Euro-top feel, and I think your wool topper should be fine as a natural FR layer.

B.M.F · January 25, 2026, 9:29pm

*** Update - I Did It ***

First off, thanks to communities like this I was able to gain enough education to do this. And as such, I thought it would only be prudent for me to reply back with my details to add to the ever growing knowledge that is already available.

As I mentioned initially, I had a new WinkBed+ mattress and it just wasn’t a good fit for me. The coils are strong enough, but not enough comfort layers to get good sleep on my side, and the lumbar support was kind of annoying for me.

I ultimately built a latex wool mattress with various components coming from multiple vendors. I’ll put links to everything below. I ordered everything within days of Black Friday 2025… so when everyone was extremely busy, and I’m very happy to say I didn’t have any negative experiences… great supply chain execution. Extra tip of the cap to @Sleep_EZ who notified me that I accidentally ordered latex in both California King and Standard King Size. I called, we sorted it out, and everything arrived perfectly.

Vendors with Bed and Mattress Specs:
1X (EmBrace)® 360 Platform Bed from @knickerbockerbedframe.com
1X Emmett Vertical Tufted Headboard from @westelm.com
2X 1” coconut coir pad from @thefutonshop
3” Extra Firm Dunlop from @Sleep_EZ
2” Firm Dunlop from @Sleep_EZ
2” Firm 32ILD Talalay from @Arizona_Premium
3” Medium 28ILD Talalay from @Arizona_Premium
1” MyDual Pad from @ sleep&beyond
1X 2” Luxury Knit Topper from @sleeponlatex
1X 10” Luxury Knit Topper from @sleeponlatex
1X 12” Organic Cotton & Wool Zippered Mattress Cover from @Sleep_EZ
1X organic wool puddle pad from @diynaturalhome.com
1X Signature Solid Flannel Sheets from @garnethill.com
1X Granny Blanket from @thomasleesheets.com

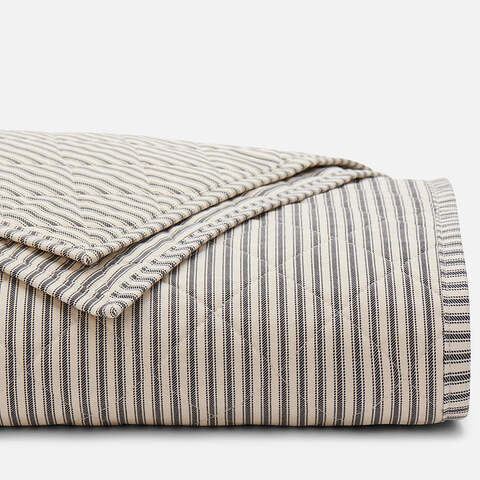

1X Ticking Stripe Classic Quilt from @redlandcotton.com

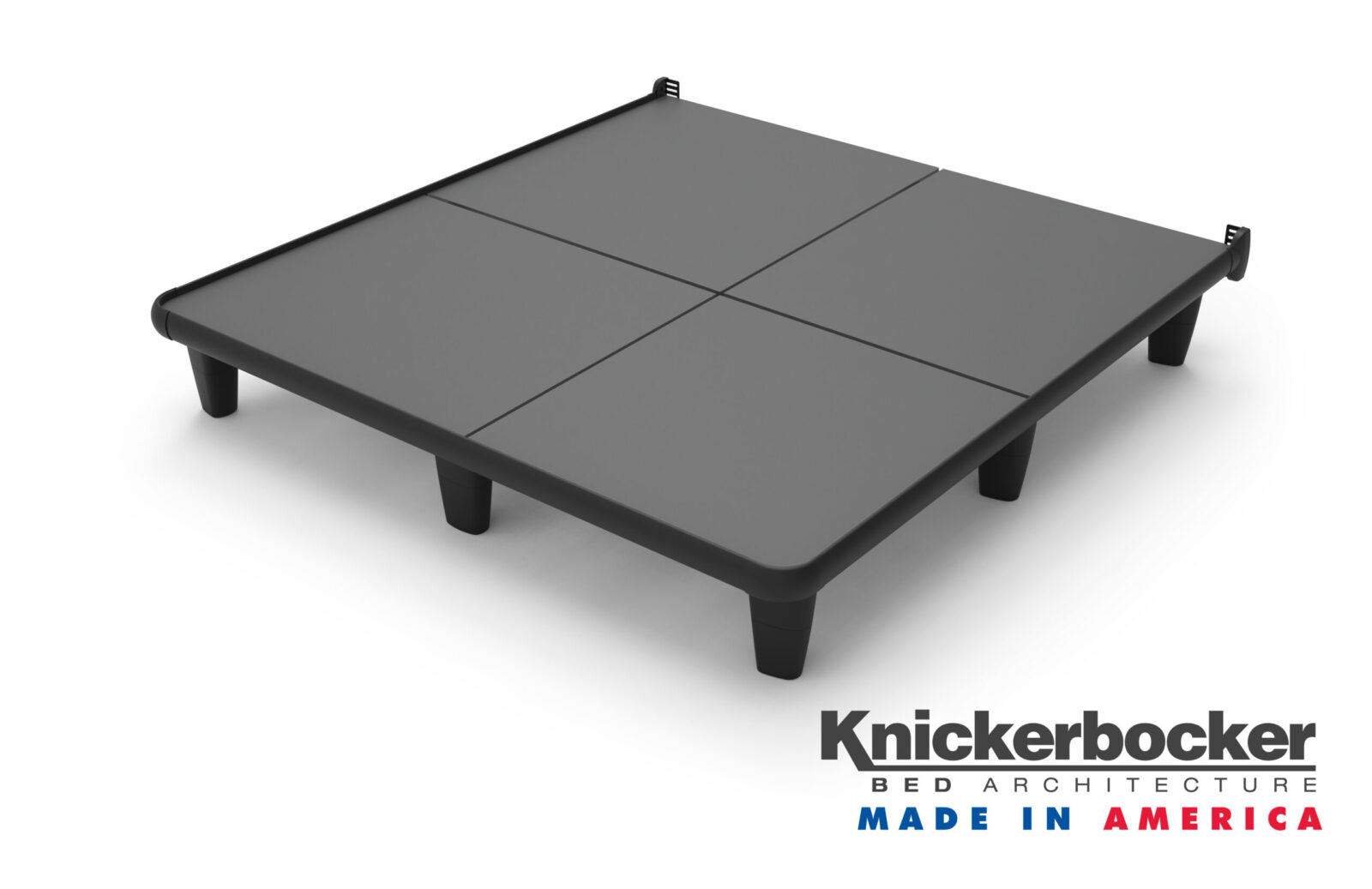

From the topic description, I am a heavy guy… currently weigh 330 pounds… but was 470 pounds 2 years ago. The Knickerbocker360 platform bed has solid upholstered plywood platform… this is a tank of a bed rated to hold 10,000 pounds… yea, overkill. I have it set for 7.5” ground clearance, but can also sit at 12” if you prefer elevated height. Because it has no slots for air circulation, is why I added 2” coir pad at the bottom of my mattress. The West Elm headboard was easy to setup… they installed it, but the bed has brackets so it was just the case of finding the correct fasteners.

I first unrolled both the 1” coir pads and put them in a 2” knit cover from Sleep on Latex. This cover is very soft, stretchy and perfectly used as an internal sock liner. This was the first layer installed in my @Sleep_EZ 12” cover.

Next, I installed the progressive density Latex layers inside the 10” knit cover and put this overtop the 2” coir bedding.

Finally, I installed the 1” MyDual Pad from @ sleep&beyond on top, with the Fleece side facing up. This pad has a very light and thin bedskirt I gently tucked to keep it from sliding on top.

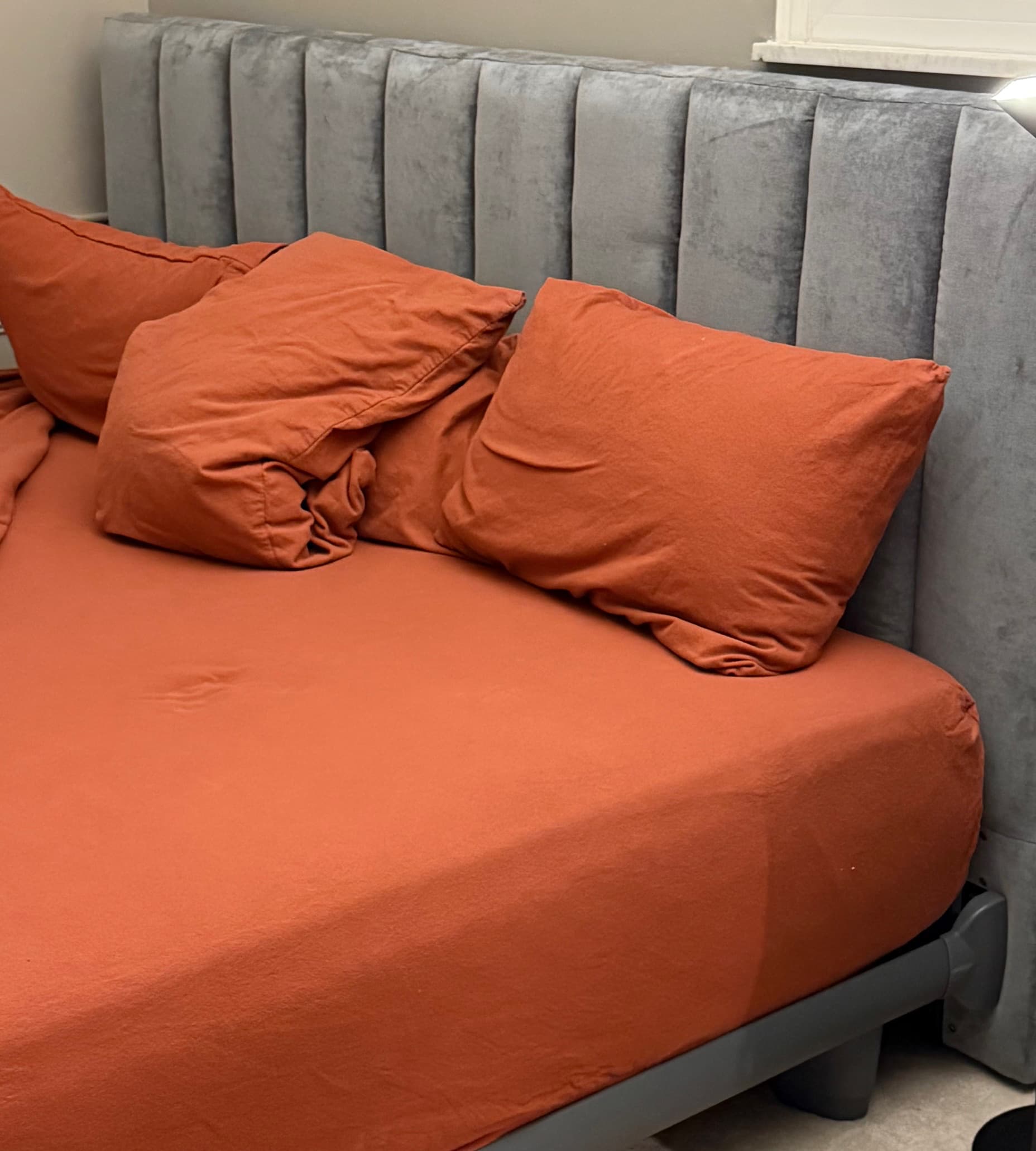

This was 13” of materials, and 2 thin knit socks. I had no issues easily getting the mattress fully zipped. It has since settled in perfectly and there is zero stress on the zippers.

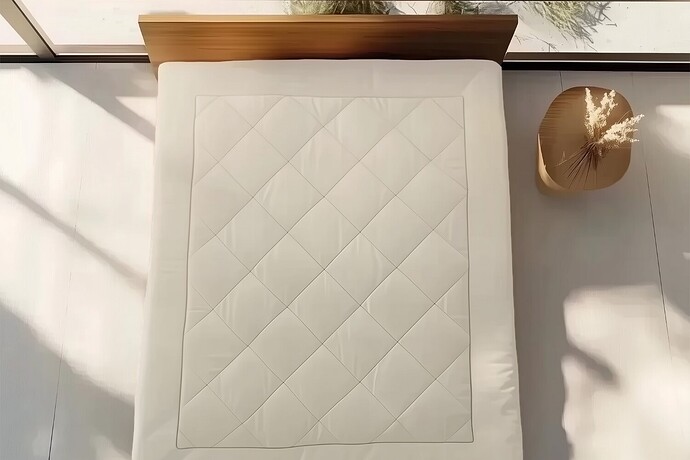

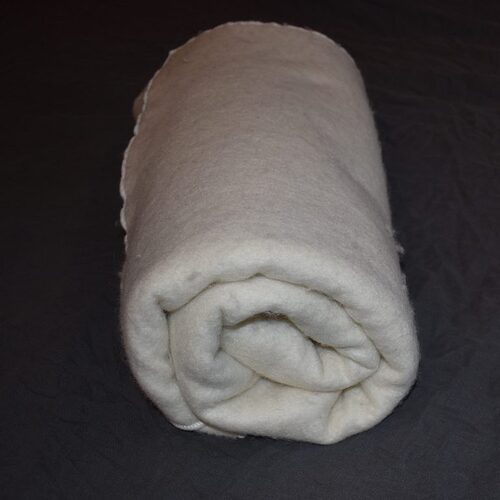

I topped the mattress off with a 1/4” needle punched organic wool puddle pad from @DIYNaturalHome.com. This is a heavenly made product. I ordered 13” straps and this thing stays locked in position once my bed is made… and really helps keep your fitted sheet locked in position as well… no bunching or shifting sheets.

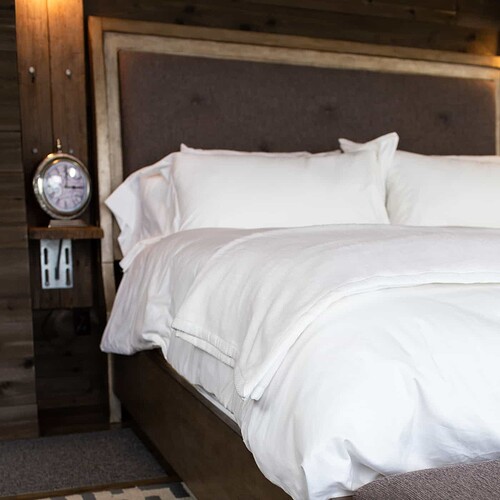

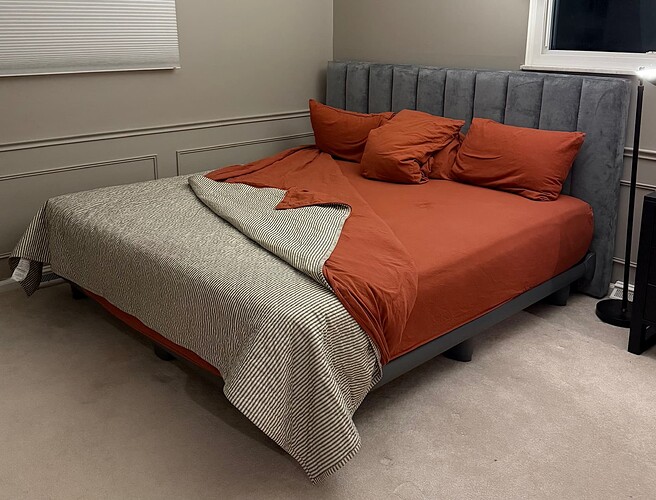

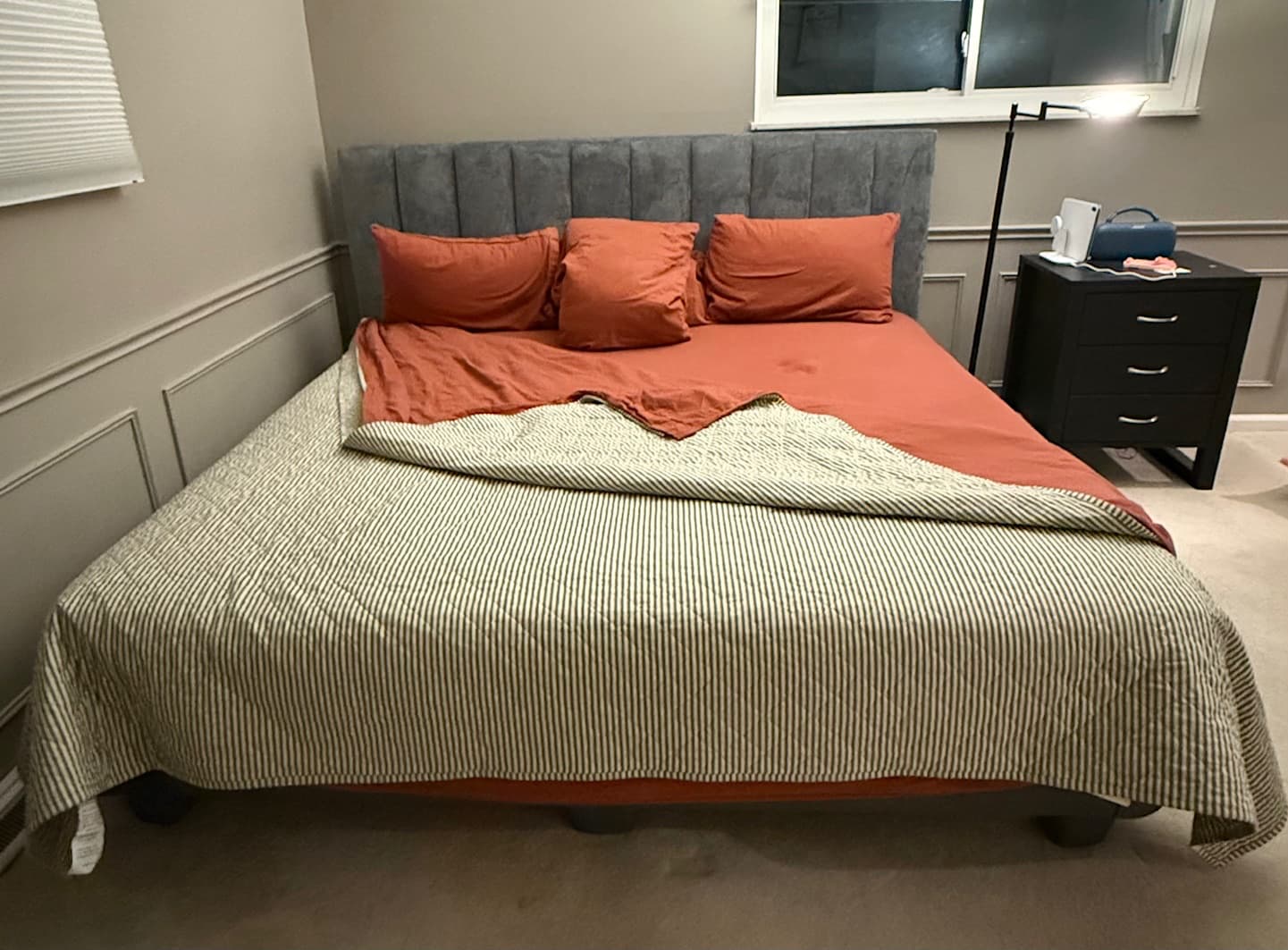

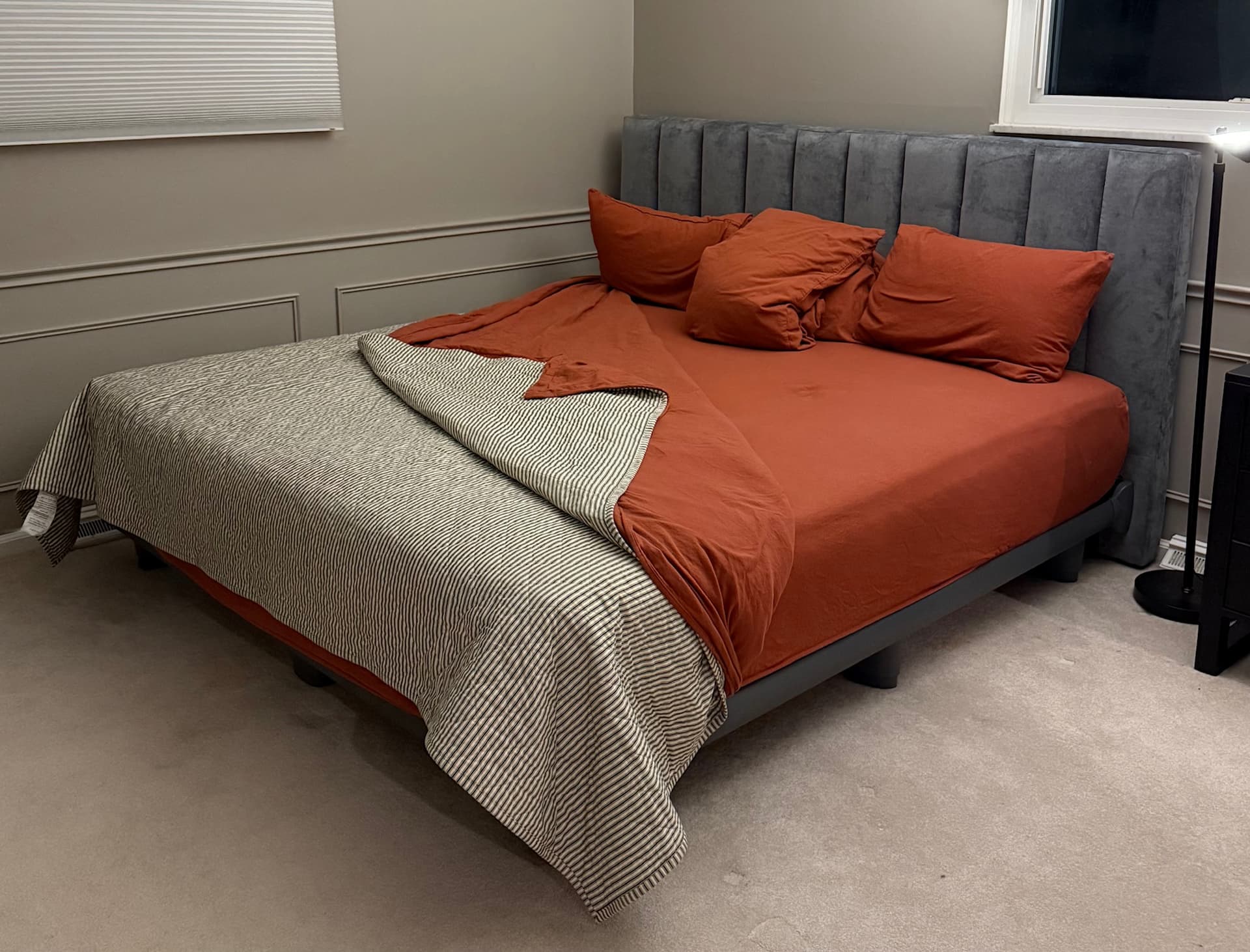

I’ve made my bed with heavy duty flannel sheets, and all season comfort blanket and top quilt. The Garnet Hill signature flannel sheets are hefty, 6.3oz and very substantial… it’s cold in NW Ohio, so with the lighter blanket and quilt, it is welcomed in the winter! The quality of the Granny Blanket and Red Land Quilt… zero complaints… all this bedding will last many, many seasons and years… I think, .

Just some general comments from me. It’s a beast, handling 76x80 slabs of latex foam is no joke. I was stressed when I built it because I wanted everything made to micron tolerances… and with the weight, and manufacturing +/- tolerances… you will not get everything stacked and built with 100% precision… it’s just not doable unless you have some serious kit to help… this was built by me and 1 partner, so we did the best we could.

It’s been about 5 weeks now, and I’ve only rotated this beast once… and it is a freaking nightmare. I’m so glad I put the coir bed inside the mattress, because it really is the only thing that makes maneuvering this thing possible. I’ll continue to rotate every month until my wool pillow top and pad is evenly compressed… after that, I will probably only rotate quarterly, or even every 4 months… I’m not exaggerating how incredibly difficult it was to rotate this monster by myself.

If I could do it over, I’m not sure I would change anything. I might consider buying the latex in split king, even if the foam is identical. It would be easier to assemble as twin xl pieces, get them in the knit sock, then install. But honestly, it won’t help with rotating it or anything. Need bed manufacturers to design a bed with a lazy Susan type feature to easily spin the mattress, LOL.

This thing is comfortable… I LOVE it!! I used AI to go over my physical weight, height, shoulders, waist size, etc… my preferred sleep positions, everything. We curated a good progressive latex ILD design, with flexibility to swap the talalay layers if I found it soft… but the side sleeping is an absolute pleasure, and I’ve kept the 28ILD on top as my comfort layer. This mattress should last 10 years before I need to start paying attention to the comfort layers only… the firm layers should last much, much longer. Also, AI is a great tool, but I noticed little inconsistent replies… so take your time, and do it more than once, and then use all the AI platforms to confirm designs… just a suggestion for accuracy.

I’ll come back and provide updates on how it is breaking in and performing down the road.

https://www.garnethill.com/signature-solid-flannel-sheets/204925?searchTerm=SUGGESTION%2520–%2520Signature%2520Solid%2520Flannel%2520Sheets

Again, thanks to everyone for communities like this!

Brett
